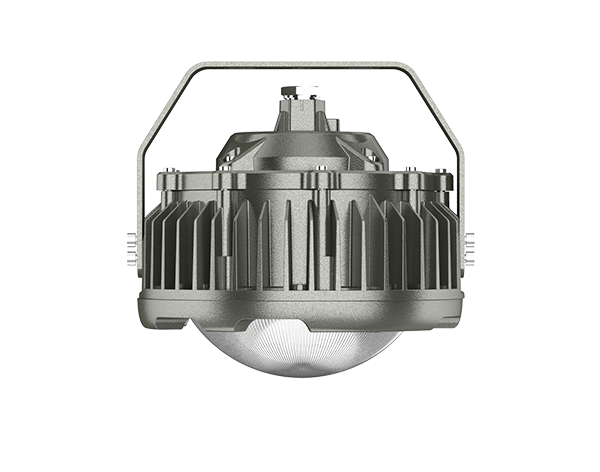

چراغ ضدانفجار مدل OHBF8231 (50~100W)

  • جهت استفاده در صنایع نفت، معادن، پالایشگاه، کارخانه های صنایع شیمیایی، نظامی و محیط های پر خطر دیگر
  • قابل استفاده در زون 1 و 2 گازی
  • قابل استفاده در زون 21 و 22 غبار آتش زا
  • قابل استفاده در گروه دمایی T1-T6(T5)
  • گرید Ex d IIC T6



Product Features



Configuration: Using imported LED light source, the average service life is as long as 100,000 hours. The power supply adopts wide voltage processing, which can realize constant current output, has short circuit and over voltage protection functions, and greatly prolongs the service life of lamps and lanterns.



The radiator adopts an integrated streamlined structure, which can better increase the heat conduction. The radiator is arranged in an internal and external circular array to improve the heat dissipation performance.



Anti-glare: toughened glass cover (transparent and frosted two options), anti-impact, anti-glare, so that the light uniform and soft without shadows, transmittance up to 95% – 98%, suitable for all kinds of low-roof, platform, high-roof, high-roof and other places as fixed lighting.



Protection: The protection level of the lamp body is IP66, and the anti-corrosion level can reach WF2. The surface of the lamp body will never corrode and rust.



Installation mode: Suspension ceiling, bending rod, vertical rod, top ceiling, U-shaped shock-proof bracket (angle adjustable) and other installation modes can be adopted as required.



Inlet port: Series and parallel connection of lamps and lanterns can be realized by adopting double inlet design.



Product Parameters





Item

Symbol

Description

Unit


8231B-2代-单口 (4)-1.png

Rated Voltage

VOLT

AC220

V

Power

P

۵۰-۱۰۰

W

Frequency

f

۵۰

Hz

Light Efficiency

η

۱۲۰

Lm/W

Power Factor

PF

۰٫۹۵

PF

Operating Temperature

TOPR

-۲۰~+۴۰

Storage Temperature

TOPR

-۲۰~+۴۰

Protection Level

IP

IP66

IP

Lighting Angle

θ

۱۲۰

°

Light Source

/

led

Correlate Color Temperature

CCT

۳۰۰۰-۶۵۰۰

K

Color Rendering Index

CRI

≥۷۰

RA

LED CHIP Qty

/

۱۰۰

PCS

Base Specifications

/

CREE3030

LED’S Operating Life

LIFE

۱۰۰۰۰۰

Hours

Start-up time

T

≤۰٫۲

S

Anti-corrosion Grade

/

WF2

Explosion Proof Grade

/

Ex d IIC T6 Gb

Executive Standard

/

GB3836.1GB3836.2

Weight

/

۵٫۹

KG

Size

/

Φ۲۵۲×۲۰۱

MM







Dimensions





图层 513.png





Install
